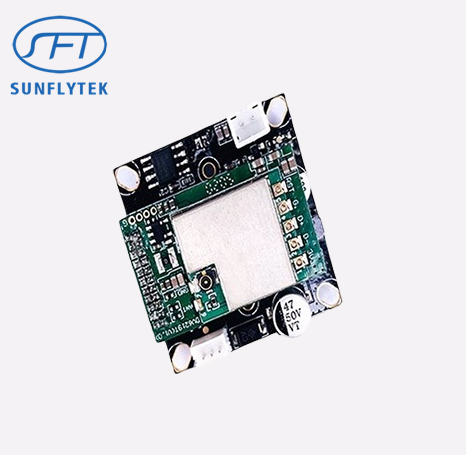

2.4G無線數字發射模組DV6219CT

傳輸方式:數字無線

無線頻段:2.4G

産品型号:DV6219CT

應用領域:車載後視、安防監控等

聯系我們
産品詳情

ITEM

DV6219CT

直流特性(DC   Characteristics

供電電壓(POWER SUPPLY)

DC +12V~+32V

耗電流(Current Consumption)

160mA±20mA @DV 12V

工作環境(Environmental Specification

工作溫度(Operating Temperature

-20~+70   ºC

存儲溫度(Storing Temperature

-30~+85   ºC

工作濕度Operating humidity

85%RH

基帶數字規格(BASEBANGD SPEC.

開機時間(POWER ON

3S Max.

延遲時間(Latency

200mS Max.

圖像傳感器(Image Sensor

1/3

像素陣列(Pixel Array

480*720

身份識别(ID

對碼(Pairing

身份識别(ID/位數(BIT

對碼(Pairing/ 22(4KK)

Pairing mode

上電自動對碼

Power on automatic code matching)

視頻幀率(Frame   Rate

20f/s MAX.

系統架構(SYSTEM Architecture

RISC(32Bit) SOC

射頻規格(RF SPEC.

RF model

MR7916A-IPX

工作頻率範圍(Operation Frequency

2400 ~ 2483.5MHz

Frequency   Band

2.412~2.4835 GHz ISM Band

Modulation   Method

BPSK/   QPSK/ 16-QAM/ 64-QAM

Standard

802.11b/g/n,   802.3, 802.3u

Data Transfer Rate

1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120

and   maximum of 150Mbps

Spread   Spectrum

IEEE   802.11b: DSSS (Direct Sequence Spread Spectrum)

IEEE   802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)

RF   Output Power

<   14dBm@11n<   15dBm@11g<   19dBm@11b

Operation   Mode

Ad hoc,   Infrastructure

Receiver   Sensitivity

11Mbps-86dBm@8%,54Mbps-73dBm@10%,130Mbps, -66dBm@10%

Security

WEP, TKIP, AES, WPA, WPA2

天線輸入輸出阻抗(RF Impedance

50Ω, Typ.

RSSI顯示級數(RSSI Level

4

輸入/輸出駐波比(Voltage   Standing Wave Ratio

2:1

傳輸距離 (Line   of Sight Range)

250m (MAX) in open   space

視頻(Video Characteristics)

視頻輸入阻抗(Video Output impedance

75Ω,   Typ.

視頻頻率響應

Video Frequency Response

±5 dB,   Max. 50Hz ~ 6MHz

外觀(Outline

尺寸(Size

32mm*32mm
