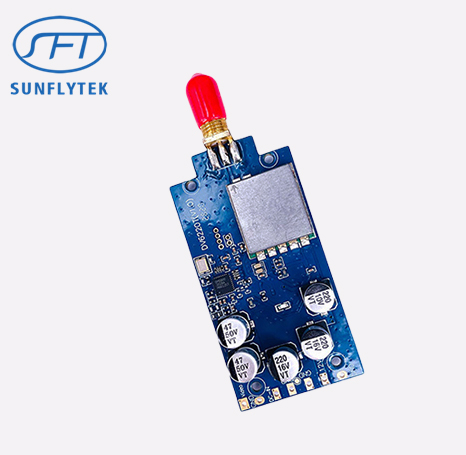

2.4G無線數字發射模組DV6220T

傳輸方式:數字無線

無線頻段:2.4G

産品型号:DV6220T

應用領域:車載後視、安防監控等

聯系我們
産品詳情

ITEM

DV6220T

DV6218R

直流特性(DC Characteristics

供電電壓(POWER SUPPLY)

DC +12V~+24V

DC +8V~+24V

耗電流(Current Consumption)

165mA±20mA @DV 12V

315±20mA   @DC12V

LCD

工作環境Environmental Specification

工作溫度(Operating Temperature

-20~+70   ºC

存儲溫度Storing Temperature

-30~+85 ºC

工作濕度Operating humidity

85%RH

基帶數字規格(BASEBANGD SPEC.

開機時間(POWER ON

3S Max.

延遲時間(Latency

200mS Max.

視頻輸入(Video Input

PAL/NTSC CVBS

-

身份識别(ID

對碼(Pairing

TFT-LCD

-

5"  RGB LCD

解析度(Resolution

-

800*480

身份識别(ID/位數(BIT

對碼(Pairing/ 22(4KK)

Pairing mode

上電自動對碼

Power   on automatic code matching)

按鍵操作

UI菜單PAIRING

視頻幀率(Frame   Rate

20f/s   MAX.

系統架構(SYSTEM Architecture

RISC(32Bit) SOC

射頻規格(RF SPEC.

RF model

MR7916A

工作頻率範圍(Operation Frequency

2400 ~ 2483.5MHz

Frequency   Band

2.412~2.4835 GHz ISM Band

Modulation   Method

BPSK/   QPSK/ 16-QAM/ 64-QAM

Standard

802.11b/g/n,   802.3, 802.3u

Data Transfer Rate

1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120

and   maximum of 150Mbps

Spread   Spectrum

IEEE 802.11b:   DSSS (Direct Sequence Spread Spectrum)

IEEE   802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)

RF   Output Power

<   14dBm@11n<   15dBm@11g<   19dBm@11b

Operation   Mode

Ad hoc,   Infrastructure

Receiver   Sensitivity

11Mbps-86dBm@8%,54Mbps-73dBm@10%,130Mbps, -66dBm@10%

Security

WEP, TKIP, AES, WPA, WPA2

Operation Range

Up to 300 meters in open space

天線輸入輸出阻抗(RF Impedance

50Ω, Typ.

RSSI顯示級數(RSSI Level

4

輸入/輸出駐波比Voltage   Standing Wave Ratio

2:1

傳輸距離 (Line   of Sight Range)

250m (MAX)

視頻(Video Characteristics)

視頻輸入阻抗(Video Output impedance

75Ω,   Typ.

視頻頻率響應

Video Frequency Response

±5 dB,   Max. 50Hz ~ 6MHz

外觀(Outline

尺寸(Size

58mm*28.9mm

63mm*40mm(主闆)

55mm*7.05mm(按鍵闆)
